Installation Requirements
"Instructions are usually for other people. This time, make an exception."
Safety is not separate from the sauna experience — it is where it begins.
Different heaters have different requirements, but none of them are designed to be installed using guesswork, wishful thinking and a strong belief that everything will somehow work out.
"Instructions are usually for other people.
This time, make an exception."
Wherever the sauna is built, the principle is simple: meet the installation, ventilation and safety requirements, and FinSteam can open up a whole new range of possibilities for your sauna.
and Safety Guide
But especially for those who have been told that an electric or wood-burning sauna heater simply is not an option. And for those who believe a great sauna should not be tied to a power supply, a chimney – or even one permanent location.
FinSteam gives you the freedom to rethink where a sauna belongs. In your backyard, by the beach, at the edge of a forest, on a mountainside, on a rooftop terrace or travelling with you in a caravan or mobile sauna.
and Safety Guide
All specified requirements concerning ventilation, safety distances, gas connections, installation location and use must be followed. Never modify the heater or deviate from the approved installation method.
Place the heater on a level, stable and load-bearing surface.
When installing the heater on a wooden floor or another combustible surface, use a suitable non-combustible protective base.

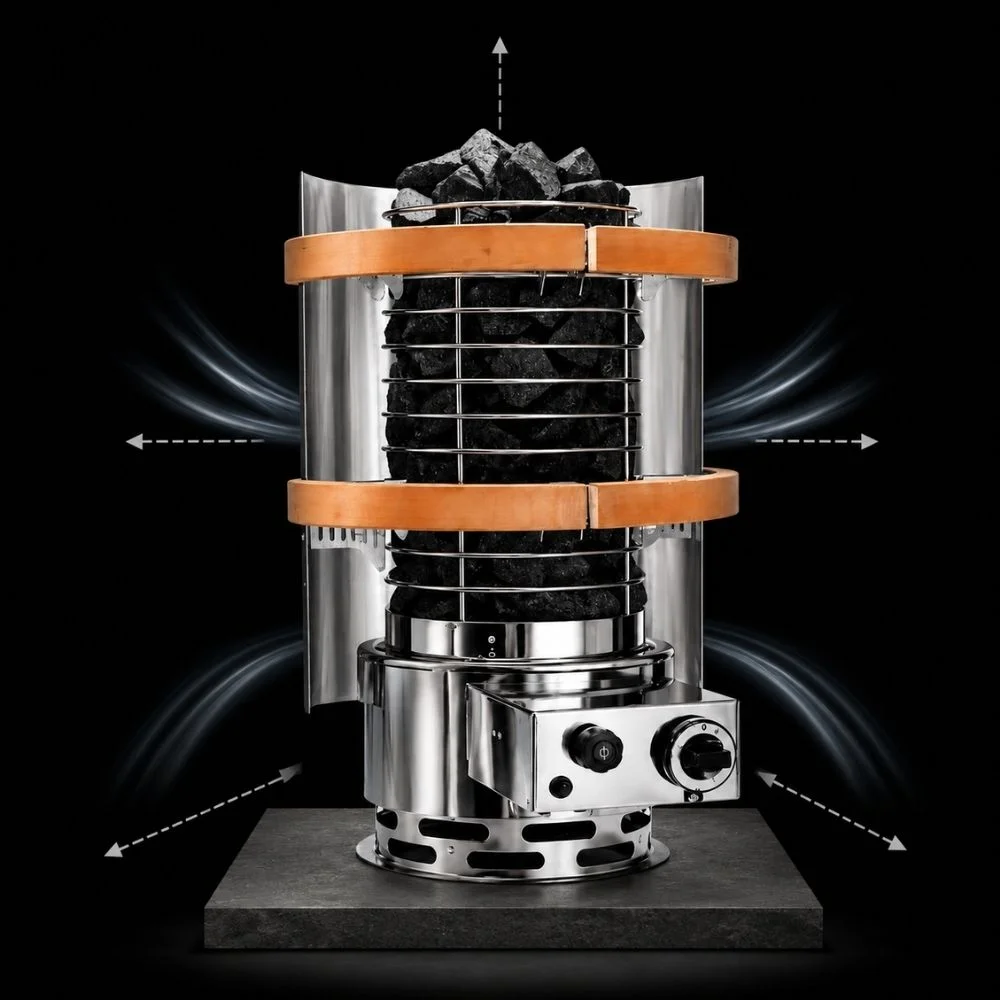

Maintain a minimum clearance of 200 mm between the heater and combustible materials on all sides. This clearance may be reduced to 50 mm by using a suitable fire-protection board or a correctly installed FinSteam NJORD Heat Shield, in accordance with the FinSteam Installation and Safety Guide.
Maintain at least 1000 mm of unobstructed clearance above the heater.
Always maintain these minimum clearances and follow the current FinSteam Installation and Safety Guide and applicable local requirements.

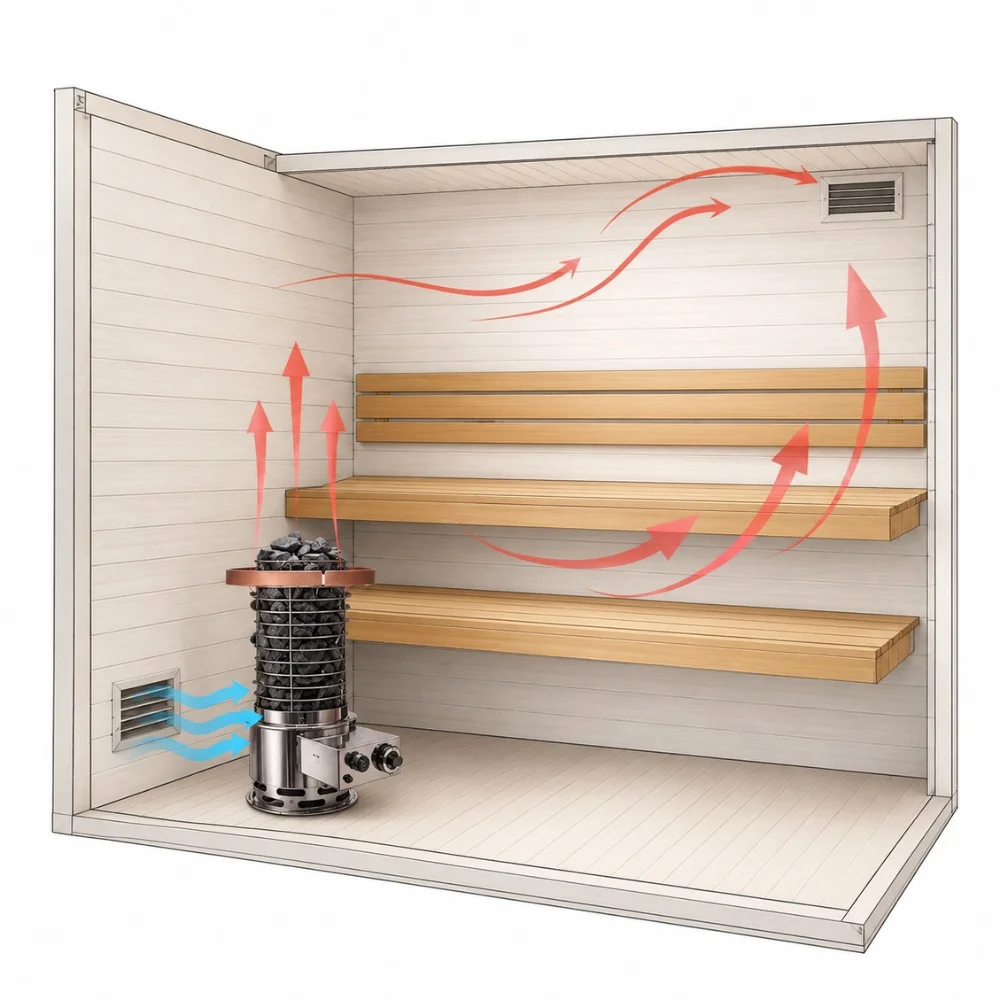

Combustion air must be drawn directly from outdoors, and exhaust air must be discharged directly outdoors.
Keep both ventilation openings unobstructed whenever the heater is in use.
Use the heater only in a sauna equipped with suitable natural ventilation.
Please note that FinSteam cannot be installed in saunas with mechanical ventilation.
Provide an adjustable exhaust-air outlet with at least 250 cm² of unobstructed free opening area.
Combustion air must be drawn directly from outdoors, and exhaust air must be discharged directly outdoors.
Keep both ventilation openings unobstructed whenever the heater is in use.
Use the heater only in a sauna equipped with suitable natural ventilation.
FinSteam gas sauna heaters are CE-marked and hold EU Type-Examination Certificate No. A01/002220, issued by AENOR, Notified Body No. 0099.
